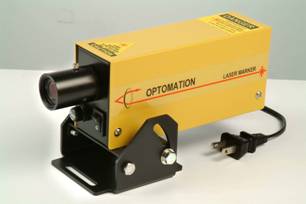

LASERMAN LDM7010

A visible sharp, precise and accurate line for cutting, marking and assembly.

with temperature cooler to increase

LD efficiency & stability
　

* Projected line 5~10 M at 2.0~3.0M distance
* Double grounding protection

* Metal shielding

* Long lifetime

	Power	Fixture	Laser diode	system Output	Laser Endurable Temperature	Lifetime	Work Distance
LDM7010	90~240VAC	BS or Z-Slide	20mW	10mW	70℃	> 1.5 years	2.0~3.5 M
LDM7020	90~240VAC	BS or Z-Slide	40mW	20mW	70℃	> 1.5 years	2.0~3.5 M

	Characters of LDM7010 / LDM7020
1.	Temperature Control
	LDM70XX serial with enduring high temperature LD(70℃), and with a cooler to keep
	LD operating temperature within 23℃. Then, there will be the best ambiance.
2.	Nitrogen anti-fog & Al cover shielding
	The Laser gun is covered & isolated by aluminum cover to protect dust or noise. Nitrogen is injected in laser module to anti-fog, and to increase LD efficiency & stability
3.	Noise Guarded
	LDM70XX serial with special design, aluminum cover to protect noise & static
	electricity. But keep away from the source of static electricity is necessary.
4.	Full Range Input
	The input power voltage is full range and auto switching, can be from
	90 to 240VAC.
5.	Straight Line
	The Projected line of Laser Marker compare with lever each one, so it
	must be straight.
6.	Sharp / Bright
	The Projected line is very thin, the width is 1.0~4.0mm that depends on color of
	workpiece & the distance. The line is bright smoothly.
7.	Use Friendly
	The Laser marker can be used in stone machine, wood machine,
	tire machine, textile industry, screen printing, forming machine or alignment.
	And the holder of Laser can be fixed easily.
8.	Well Reliability
	Each Marker's input power supply is 4~5 times and output power is 2 times
	design. And each Marker out of factory after 7 days tested stably.
